Technical analysis: The front wing that Force India hopes will turn its season

Force India has rather pinned its hopes of turning its season around on the updates that it had available in Barcelona.

Published: May 22, 2016, 7:33 AM

Copy link

Share on Facebook

Share on Twitter

Share on WhatsApp

Share on Linkedin

Share on Pinterest

Share on Viber

Add as a preferred source

Force India VJM09 front wing, Barcelona, rendered and captioned

Giorgio Piola's F1 technical analysis

Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content

Sergio Perez even went as far as to suggest that the front wing development path it has been on in the opening rounds was the limiting factor.

"We had a very weak front wing that wasn't working properly," explained Perez. "We believe we have fixed this problem with the upgrade, hopefully.

"By not making the wing work, it meant we had to fix [the car] mechanically and that meant more damage to the tyre.

"I won't go into too much detail, but in general the car was not performing as expected. So we had to compensate with the set-up, so we were then compromising the tyre life for it."

It will be a huge sigh of relief to Perez that the wing was available in Spain then and will perhaps re-open the door to the longer stint length strategies we've seen from him in the past.

Sahara Force India F1 VJM09 new front wing detail

Sahara Force India F1 VJM09 new front wing detail

Photo by: Giorgio Piola

The new wing is clearly inspired by the Mercedes design introduced early in 2015, with a squared tunnel in the outboard section of the wing (highlighted in green) taking up the primary role of moving air flow around the front tyre.

This compartmentalisation of the wing's functions means that the rest of the flapped region has also undergone some geometric alterations.

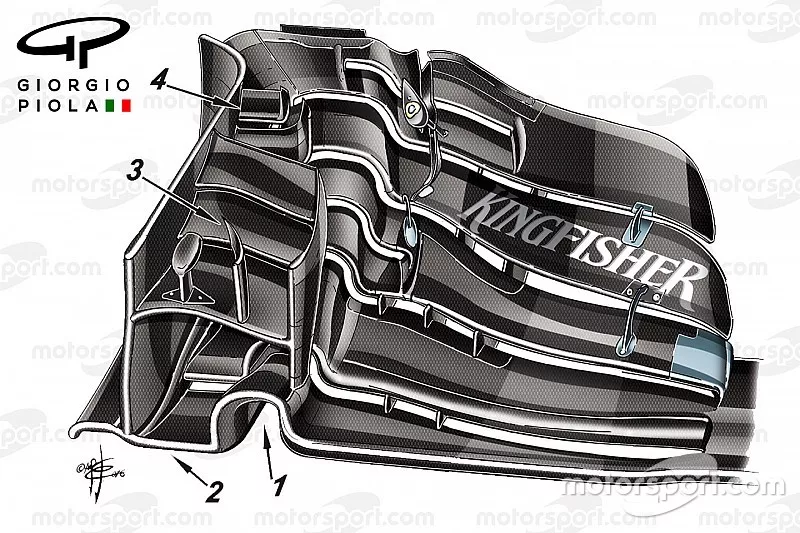

Force India VJM09 front wing, Barcelona, rendered and captioned

Force India VJM09 front wing, Barcelona, rendered and captioned

Photo by: Giorgio Piola

The primary arc [1] on the leading edge of the mainplane, which feeds the expanding tunnel is supplemented by full length slots in a wider footplate section [2] alongside it.

These slots help to keep the tunnel from choking in yaw, maintaining control of the tyre wake in the most important phase and when downforce is at a premium.

In the main cascade, a small change was made to the vanes [3] with the secondary element lengthened.

In line with the change to the outboard section of the wing, two Z-shaped winglets [4] can now be found hung from the inboard side of the endplate, which along with the main cascade in front of them will further shape the movement of airflow around the front tyre, changing the shape of the wake it sheds and improve performance downstream.

Floor

The VJM09's floor, ahead of the rear tyre, has also been treated to a revision, with a tyre squirt deck similar to the one used by McLaren early in 2015 employed.



Sahara Force India F1 VJM09 back detail

Sahara Force India F1 VJM09 back detail

Photo by: Giorgio Piola

Rather than use four slots like the McLaren though, the Force India design uses two slots, with the enlarged L shaped slots flared along their length to shape the airflow.

McLaren MP4-31 stepped bottom

McLaren MP4-31 stepped bottom

Photo by: Giorgio Piola

(Above) McLaren's floor from early in 2015 as comparison

'Coke Bottle'

Sahara Force India F1 VJM09 detail

Sahara Force India F1 VJM09 detail

Photo by: Giorgio Piola

Sahara Force India F1 VJM09 detail

Sahara Force India F1 VJM09 detail

Photo by: Giorgio Piola

The sidepods and engine cover were revised, with the cooling outlet narrowed improving the shape of the 'coke bottle' region. Meanwhile, the detached hoops now appear much larger, teasing the air flow out of the outlet and retaining the shape of the airflow in that region.

Rear Wing

Sahara Force India F1 VJM09 rear wing detail

Sahara Force India F1 VJM09 rear wing detail

Photo by: Giorgio Piola

The rear wing also featured several changes to better suit the characteristics of the Circuit de Catalunya.

The mainplane shape was more aggressively upturned in the central section (highlighted in green), whilst the upper flap featured a larger V groove to marginalise the additional drag being generated by the more highly loaded wing.
