Tech debrief: How Manor punched above its weight at Monza

Manor continued its upward trend in the Italian Grand Prix, surprising some of the midfield teams, at least until it suffered reliability problems.

Giorgio Piola Matt Somerfield

Edited: Sep 8, 2016, 5:16 PM

Copy link

Share on Facebook

Share on Twitter

Share on WhatsApp

Share on Linkedin

Share on Pinterest

Share on Viber

Add as a preferred source

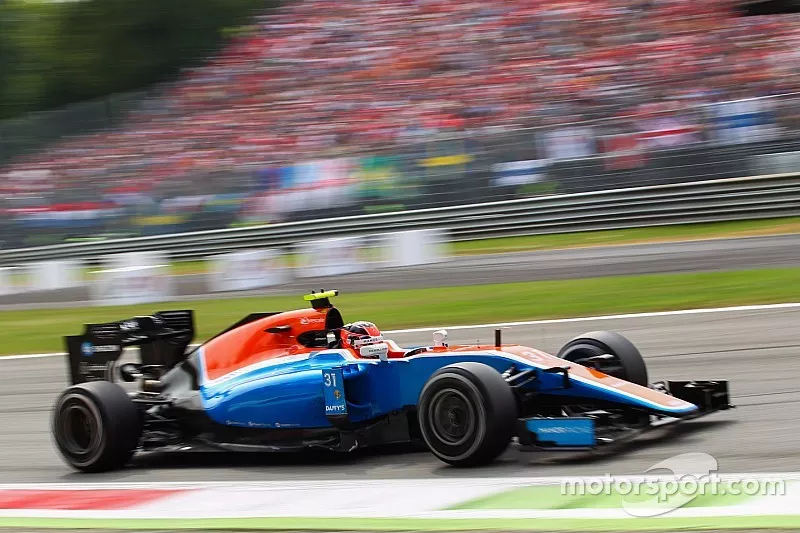

Esteban Ocon, Manor Racing MRT05

Giorgio Piola's F1 technical analysis

Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content

Manor Racing

The small team that nearly exited the sport is really starting to punch above its weight. Another fantastic performance from Pascal Wehrlein saw the Manor progress to Q2 once more and line-up 13th on the grid, following Grosjean's five-place grid penalty.

However, niggles for its other driver Esteban Ocon and the demise of Wehrlein during the race, owing to a loss oil pressure, means the team still needs to work hard to convert its upturn in pace into results.

Manor Racing MRT05, Front wing

Manor Racing MRT05, Front wing

Photo by: Giorgio Piola

For Monza the team introduced a new front wing flap option, whereby the two-flap configuration ordinarily run by the team was reduced to a singular, albeit larger single flap.

Of course this is done to reduce the load on the front axle, balancing any changes made to the rear wing, as the team looks for an overall reduction in drag to improve top speed.

Manor Racing MRT05, Rear wing

Manor Racing MRT05, Rear wing

Photo by: XPB Images

It appears that the idea was to pair the front wing with a new spoon style rear wing that was introduced but was not actually raced by the team (above).

In a very similar vein to Mercedes' spoon wing, the central portion creates a dip to improve downforce, whilst the outer shorter chord sections help to reduce the size and intensity of the wing tip vortex to reduce drag.

Its intent was to run the wing without a monkey seat too, but it appears that the rear wing either didn't live up to expectations or it couldn't arrive at the right set-up quickly enough to include it.

Pascal Wehrlein, Manor Racing MRT05 leads team mate Esteban Ocon, Manor Racing MRT05

Pascal Wehrlein, Manor Racing MRT05 leads team mate Esteban Ocon, Manor Racing MRT05

Photo by: XPB Images

In the end it was only Ocon who raced the new front wing, with Wehrlein opting to retain the standard configuration, given it had chosen to run the standard configuration rear wing, albeit with a lower angle of attack.

Manor Racing MRT05, detail

Manor Racing MRT05, detail

Photo by: XPB Images

The one thing that did stay on both cars though was a new cobra style vane (highlighted in yellow) mounted on the floors axehead.

It's something we've seen the team use in its previous guise when fitted to the MR03B during the 2015 season and impedes some of the potential damage that wake shed by the front tyre can have on the surrounding airflow structures.

Toro Rosso

Toro Rosso has been displeased by the 'B-spec' aero package it introduced in Germany. So much so that it decided to conduct back-to-back tests with the old configuration during free practice, as it tried to understand just why it wasn't getting the numbers promised in the wind tunnel.

The update featured a new front wing, front brake duct, sidepod airflow conditioners, floor and rear brake duct.

Carlos Sainz Jr., Scuderia Toro Rosso STR11

Carlos Sainz Jr., Scuderia Toro Rosso STR11

Photo by: XPB Images

Carlos Sainz, who clearly has a little more experience with the old package than Kvyat, completed the back-to-back comparison in order for the data to be scrutinised by the trackside and factory-based teams to establish its direction going forward.

We await the results in the next few GPs but in the meantime both drivers ran the new specification for qualifying and the race.

Renault

Renault Sport F1 Team RS16, louvres

Renault Sport F1 Team RS16, louvres

Photo by: Giorgio Piola

Renault had some new bodywork at the Belgian GP but with temperatures soaring it convinced itself not to run it, as it was only a test for the forthcoming flyaways where it is scheduled to introduce a new power unit.

However, during FP3 in Italy the team swiftly conducted some tests with the bodywork mounted on Jolyon Palmer's car. The package consists of new panels around the cockpit, complete with louvres that displace the heat rejected in that region (above).

Renault R.S.16 rear bodywork, captioned, Italian GP

Renault R.S.16 rear bodywork, captioned, Italian GP

Photo by: Giorgio Piola

Whilst at the rear of the car the sidepods shape has been changed to create a much larger cooling aperture, indicating that the increased track temperatures at the forthcoming grands prix and the updated power unit require a sensible approach to cooling.
