Tech analysis: How Renault made big progress with its 2017 car

A stellar showing in the opening week of the pre-season Formula 1 testing at Barcelona has put Renault in a good position to move on from its underwhelming return campaign in 2016.

Matt Somerfield Giorgio Piola

Edited: Mar 6, 2017, 1:22 PM

Copy link

Share on Facebook

Share on Twitter

Share on WhatsApp

Share on Linkedin

Share on Pinterest

Share on Viber

Add as a preferred source

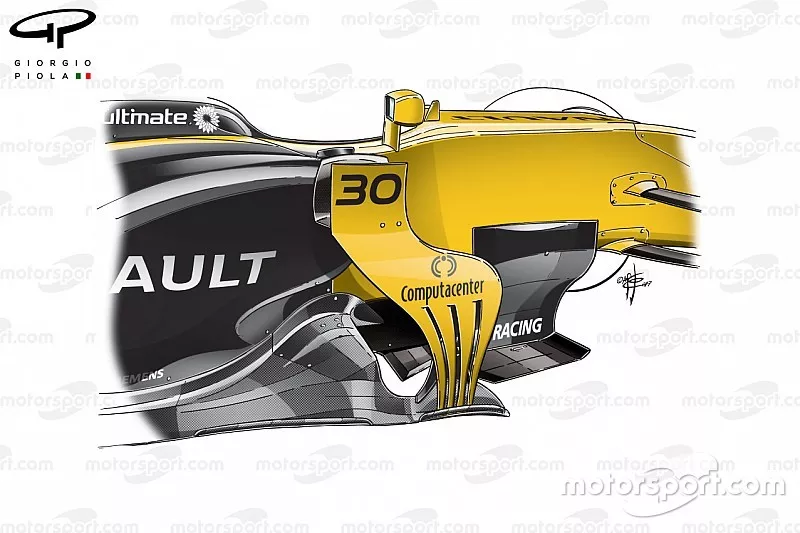

Renault R.S.17 barge boards detailed

The RS17, fourth-quickest on pure laptimes among the F1 contingent in Barcelona, looks a major step change compared to the RS16. That car was compromised by the late takeover of the team but more weight has clearly been thrown behind this year's challenger.

The bargeboards and airflow conditioners are an extremely complex area of the car given the change in regulations for 2017. Renault’s boomerang-shaped airflow conditioner is testament to this and features three slots in its lower surface in order to improve efficiency, while the bargeboard is shaped to maximize the upturned leading floor edge.

Nico Hulkenberg, Renault Sport F1 Team RS17 detail

Nico Hulkenberg, Renault Sport F1 Team RS17 detail

Photo by: XPB Images

Details presented on the launch car looked somewhat different come Barcelona, with the curved cockpit fin (white arrow) now featuring a curved tip which will shed a very specific type of vortex and the planned twin vortex generator alongside (red arrow) changed for just a longer, singular appendage.

Jolyon Palmer, Renault Sport F1 Team RS17

Jolyon Palmer, Renault Sport F1 Team RS17

Photo by: XPB Images

The team also introduced a blown axle solution during testing which will assist the front wing in dealing with the wake generated by the front tyre.



Renault R.S.17 illegal wing support

Renault R.S.17 illegal wing support

Photo by: Giorgio Piola

The legality of Renault’s rear wing support pillar was questioned by several teams following the car's unveiling, as it connected directly to the DRS actuator pod rather than connecting with the mainplane (arrowed). Of course, Renault wanted to use this solution as it improves the performance of the rear wing, given the mainplane is less disturbed.

It's understood that the FIA has since clarified their position, advising that the design must be tweaked ahead of the Australian Grand Prix in order that the pillar intersect with the mainplane.



Renault R.S.17 rear wing, captioned

Renault R.S.17 rear wing, captioned

Photo by: Giorgio Piola

Toward the end of the first test, the team also trialled a tall upper flap with a large central V cut, which is likely for simulation purposes - its height will undoubtedly be called into question if the team was to try to run it during a race weekend, as the flap clearly exceeds the 800mm height for bodywork behind the rear wheel centerline mentioned in article 3.6.2 of the technical regulations.

Although that's not to say that Renault hasn't found a contradictory statement in the minutia of details that connect one article in the regulations with another.
